Halls Electrical Front Scan Proximity Sensor System
Halls Electrical Corner Scan Proximity Sensor System
Halls Electrical Side Scan Proximity Sensor System
Halls Electrical Back Scan Proximity Sensor System




Proximity sensors minimise both vehicle damage and collisions with pedestrians, cyclists or objects. Perfect for road-going commercial vehicles operating in confined spaces or manoeuvring at low speed. The detection system alerts the driver of obstacles close to the vehicle, whether moving or stationary. An audible and/or visual in-cab warning informs of distance whilst an optional external speaking alarm can be added to alert cyclists and pedestrians that the vehicle is turning.

Compliant with CLOCS, FORS and construction companies who require commercial vehicles to meet specific safety specifications.

Back Scan

4 sensor system fitted to rear of vehicle as an invaluable aid to safe reversing.

  • Underslung or flush mount installation

  • System activated by reverse gear

  • 50cm compensation range for sensors fitted inboard of vehicle rear

  • Can be fitted to articulated vehicles with additional coiled cables

Side Scan

4 sensor system fitted to side of vehicle. Particularly relevant for near side blind spot where cyclists or pedestrians can otherwise go undetected.

  • Underslung or flush mount sensors

  • System can be activated below designated speed and/or turn indicator

  • External speaking alarm with side turn warning for cyclists/pedestrians

  • Can be fitted to articulated vehicles with additional coiled cables



Front Scan

4 sensor system fitted to front of vehicle. Particularly relevant for front blind spot on high cabs where low objects or pedestrians can be hidden.

  • System can be activated below designated speed

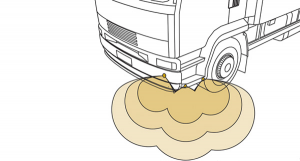

Corner Scan

3 sensor system fitted to near side corner of vehicle cab to detect objects in front near side blind spot. Minimises the risk of damage to the vehicle whilst manoeuvring and turning whilst reversing.

System can be activated below designated speed

Step Scan

2 sensor system fitted to nearside cab step. Minimises the risk of damage to the vehicle when turning whilst reversing.

  • System can be activated by reverse gear
